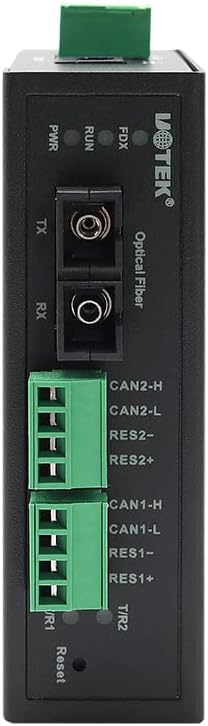

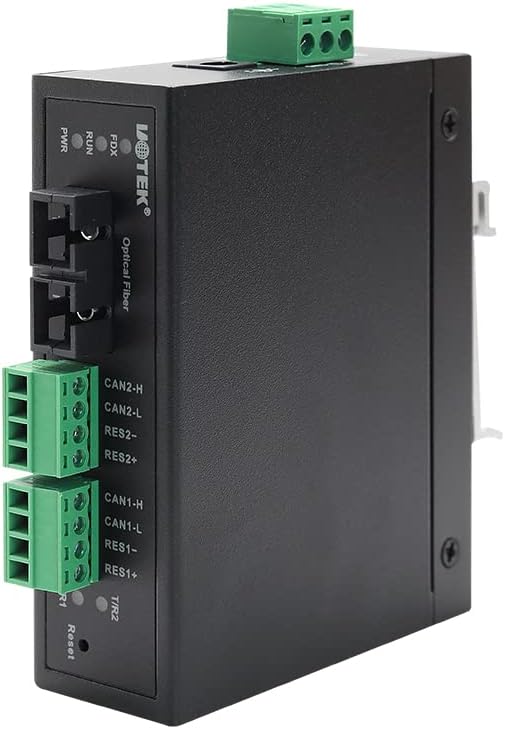

100M Fiber to CAN Bus Converter 100M Ethernet Optic to CAN 2 Ports TCP/IP Can Modbus with Isolation ESD Protection Support CAN 2.0 Protocol UT-6502SM-SC
Product details
| Management number | 231288145 | Release Date | 2026/06/18 | List Price | $44.00 | Model Number | 231288145 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The UT-6502SM-SC is a high-performance CAN-bus communication converter with 2 CAN interfaces and 1 fiber optic interface. The converter supports interconnection and interoperability between 100M fiber optic network and CAN-bus with communication rate from 5kbps to 1Mbps, which further extends the application range of CAN-bus and fiber optic, and the UT-6502SM-SC converter provides web configuration interface, so that users can flexibly set the operation parameters of the UT-6502SM-SC converter. The UT-6502SM-SC is designed with high industrial standard; the communication interface is isolated from the system and has certain anti-interference and anti-surge capability, which is widely used in industrial control and data communication system.
- Realizes bidirectional data transmission between CAN-bus and fiber optic network
- Support CAN2.0 protocol
- Integrated 2-port CAN-bus communication interface, supporting 5Kbps-1Mbps custom rate
- Integrated 1-port 100M fiber optic network interface SC
- Operating voltage: 12-36V DC
- Operating current: ≤ 150mA@12V
- Operating temperature: -40~85°C
- Isolation voltage: 1000VDC
| ASIN | B09Y925YHM |
|---|---|
| Brand | UOTEK |
| Color | Black |
| Unit Count | 1.0 Count |
| Item Weight | 600 Grams |
| Manufacturer | UTEK Technology (Shenzhen) Co., Ltd |
| Model Number | UT-6502SM-SC |
| Input Voltage | 36 Volts |
| Current Rating | 150 Milliamps |
| Item Type Name | Canbus Converter |
| Item Dimensions | 4.33 x 1.18 x 4.33 inches |
| Number of Items | 1 |
| Number of Ports | 2 |
| Package Quantity | 1 |
| Warranty Description | 2 year |
